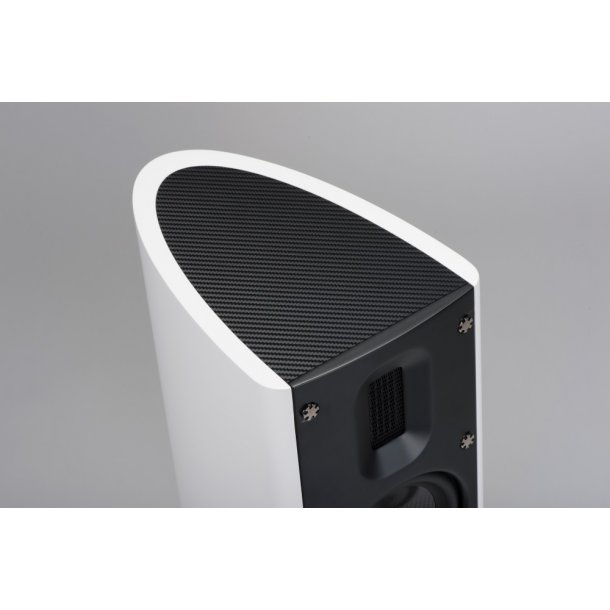

Scansonic HD MB1B monitorhøjttaler - SORT
The MB-1 is a stand-mount, two-way mini monitor.
Our main goal was to create a small speaker that does what it does really well. The reflex port is placed in the front, and it uses special inlays that reduce noise to an extremely low level. While the speaker is small and stylish, the music performance is lively bright and bold, with a bass performance that defies its compact size.
The speaker is front-ported to allow for placement near the rear wall.
The MB-series features the same good solid, two-way binding post. The feet are machined from aircraft quality aluminum and can be adjusted to level the speaker. For added rigidness, we have added a carbon sheet to the top panel; this, paired with extensive internal bracing, makes the cabinet inert and silent.
Technical information
Size: (WxHxD) 178 x 312 x 286 mm
Weight: 6,1 kg
Freq. response: 50 Hz - 40 kHz
Impedance: > 6 ohm
Crossover: 3.5 kHz 2. order acoustic slope
Enclosure: Curved, heavily braced, ventilated box design with front loaded port
Drive units: 1 sealed ribbon tweeter with kapton/aluminum sandwich membrane!
1 carbon coned 4,5? bass/mid driver with overhung magnet system
Finish: Black-silk or White-silk
Amplification: We recommend high quality amplifiers >50W
Our main goal was to create a small speaker that does what it does really well. The reflex port is placed in the front, and it uses special inlays that reduce noise to an extremely low level. While the speaker is small and stylish, the music performance is lively bright and bold, with a bass performance that defies its compact size.
The speaker is front-ported to allow for placement near the rear wall.
The MB-series features the same good solid, two-way binding post. The feet are machined from aircraft quality aluminum and can be adjusted to level the speaker. For added rigidness, we have added a carbon sheet to the top panel; this, paired with extensive internal bracing, makes the cabinet inert and silent.
Technical information
Size: (WxHxD) 178 x 312 x 286 mm
Weight: 6,1 kg
Freq. response: 50 Hz - 40 kHz
Impedance: > 6 ohm
Crossover: 3.5 kHz 2. order acoustic slope
Enclosure: Curved, heavily braced, ventilated box design with front loaded port
Drive units: 1 sealed ribbon tweeter with kapton/aluminum sandwich membrane!
1 carbon coned 4,5? bass/mid driver with overhung magnet system
Finish: Black-silk or White-silk
Amplification: We recommend high quality amplifiers >50W
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| TEST-Jan.-2015-Scansonic-MB-1-DK.pdf | 666.34KB | Download |
